COCKING SYSTEM	Sidelever
MAGAZINE TYPE	Removable high capacity 22 shot when Cal .177 18 shot when Cal .22 16 shot when Cal .25 13 shot when Cal .30
STOCK	Laminate Forest Green – Ambidextrous – Adjustable recoil-pad – Thumbhole – Adjustable cheek-piece Laminate Sapphire Blue – Ambidextrous – Adjustable recoil-pad – Thumbhole – Adjustable cheek-piece Laminate Black Pepper – Ambidextrous – Adjustable recoil-pad – Thumbhole – Adjustable cheek-piece Walnut – Ambidextrous – Adjustable recoil-pad – Thumbhole Synthetic – Ambidextrous – Adjustable recoil-pad – Thumbhole
CALIBER	4,5 (.177) 5,5 (.22) 6,35 (.25) 7,62 (.30)
BARREL	FX Smooth twist X Match grade
SHOT CAPACITY	5,5 (.22): 130 shots approx.6,35 (.25): 100 shots approx.7,62 (.30): 40 shots approx.
FILL PRESSURE	Max 250 bar (3600 psi)
SAFETY	Switch style
OPTICS	11 mm dovetail scope mount
MUZZLE	Built-In Shroud (variations may occur depending on country). .

PRESSURE GAUGE	Dual Manometers One for airtube pressure One for regulator pressure
TRIGGER	Adjustable Match Trigger (variations may occur)
VELOCITY	4,5 (.177): 300 m/s • 1000 ft/s 5,5 (.22): 280 m/s • 920 ft/s 6,35 (.25): 270 m/s • 900 ft/s 7,62 (.30): 265 m/s • 870 ft/s Note: above figures is factory recommended FAC Power output, but can be turned higher/lower if needed.
ENERGY	4,5 (.177): 24 J • 18 ft/lbs 5,5 (.22): 41 J • 30 ft/lbs 6,35 (.25): 65 J • 47 ft/lbs 7,62 (.30): 102 J • 75 ftlbs Note: above figures is factory recommended FAC Power output, but can be turned higher/lower if needed.
AIR CAPACITY	480 cc
AIR CYLINDER	Removable Carbon fiber wrapped
LENGTH	970 -1030 mm
WEIGHT	3 – 3,5 kg
CHARGING	Foster Quick Disconnec
MORE FEATURES	Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates). Dual External Power. Adjusters (hammer spring tension and airflow). AMP Externally adjustable pressure regulator. Interchangeable Caliber System.

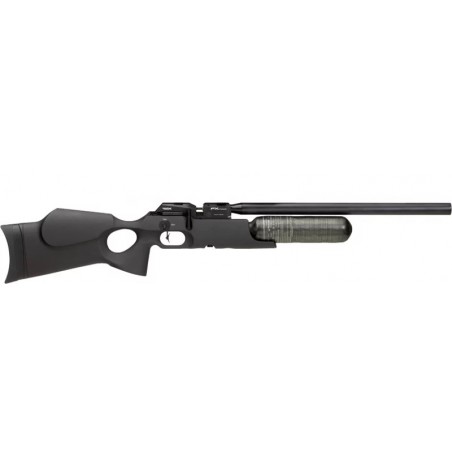

FX Crown Synthetic
