Best Fittings 40mm 1/8" BSP Back Entry Precision Gauge

40mm 1/8" BSP Back Entry Precision Gauge

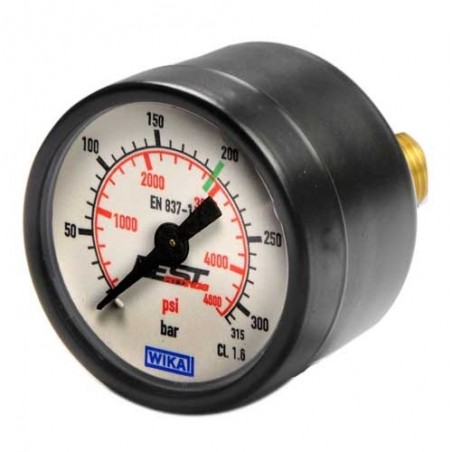

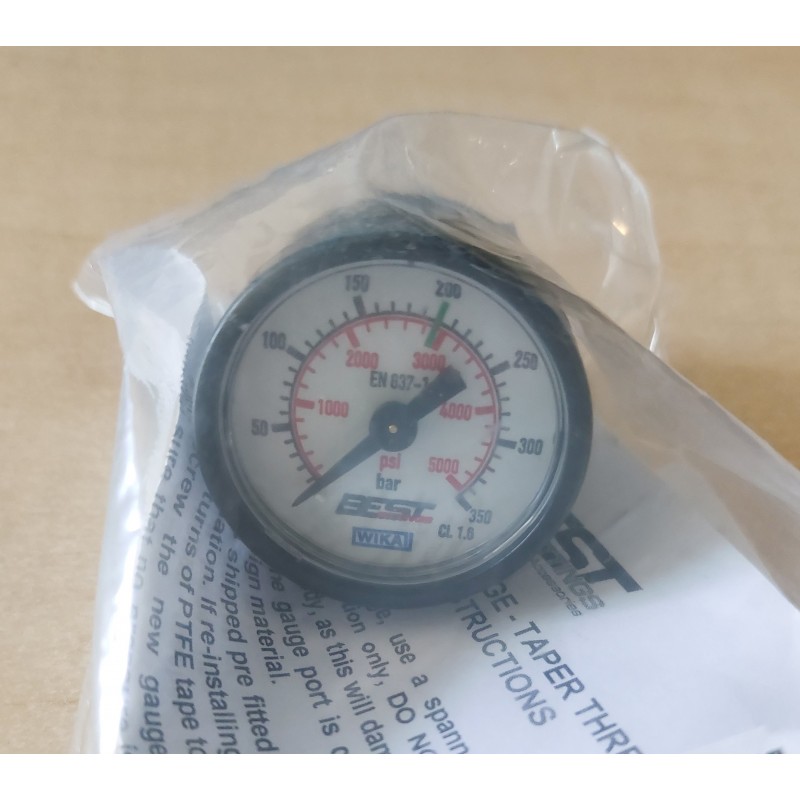

BEST Fittings Custom 40mm 0-315 BAR 1/8" BSP Back entry precision gauge.

Precision upgrade for the standard MDE Jubilee Valves

BEST Fittings do it again!

A custom designed, high accuracy gauge, specifically made to meet the exacting demands of the shooting enthusuiast.

These gauges are HPG (High Pressure Gas) safety pattern, which means that they are designed specifically for our application, unlike many Glycerine filled units that although show 0-5000psi, are designed for fluids, and are not suitable for use with HPG. Made by the world renowned WIKA Instrument manufacturer.

Our new Gauge has a 40mm diameter face, a 0-315 BAR scale in 10 BAR increments with a green indicator at 200B BAR, the most common fill pressure.

Accuracy is +/- 1.6%, which is very high for gauges of this size.

They have a robust all Steel Case, with a pressure vent and safety polycarbonate face. There is a built in flow restrictor in case of tube failure preventing high speed venting.
